Overview cards

This page lists every block you can put on an overview page and the options it has in the layout editor. How the editor itself works is described in Overview and layout editor.

All blocks

Block	Layout type	What it shows	Min. columns	Default width
Energy: status card	energy_status	Situation, thresholds, data quality	1	1
Energy: energy flow	energy_flow	Animated flow graph	2	2
Energy: self-sufficiency ring	energy_ring	Coverage/use ring	2	2
Energy: system diagram	energy_schema	Plant diagram	2	2
Energy: balance band	energy_band	Sources and consumers as proportional bands	2	2
Energy: day band	energy_day	The recorded curve of supply and use	2	2
Energy: data board	energy_board	The balance as a plain number board	2	3
Energy statistics	energy_stats	Totals for today, this week, month or year	1	1
Battery: status card	battery_status	Charge column or trajectory	1 (trajectory 2)	1 (trajectory 2)
History	history_view	Chart of a saved history view	1	2
Diagnostics	diagnostics	Health summary of all devices	1	1
Value card	entity_value	One entity as a large value	1	1
Entity list	entity_group	Several entities in one card	1	1
(Devices tab)	device	A full device tile with its controls	1	1

The editor does not let a card get narrower than its minimum, because the drawing would no longer fit. The pictures on this page show each card at its minimum width, so some text is cut off where a wider card has room. Cards that cannot use extra height offer Fixed height only as a minimum, and the extra space stays empty.

All energy cards work from the same balance as the Energy tab. None of them is tied to a particular device. Two settings that change what the cards show belong to the energy configuration, see Energy: the surplus and grid import thresholds of the status card, and the battery reserve.

Energy: status card

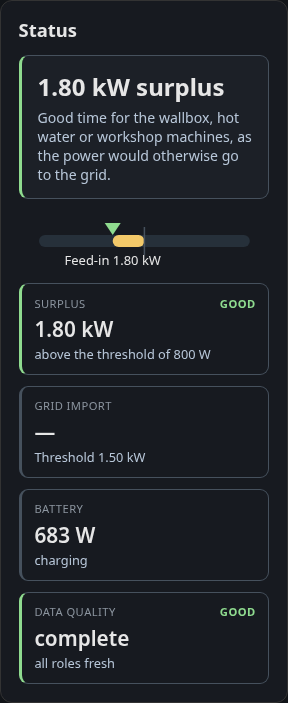

Sums up the situation in one sentence, with a scale between grid import and feed-in and tiles for surplus, grid draw, battery and data quality.

Option	Values	Default
Scale range	± 3 kW, ± 6 kW, ± 11 kW	± 6 kW
Recommendation	on, off	on

The thresholds for surplus (default 800 W) and grid import (default 1500 W) are set on the Energy tab.

Energy: energy flow

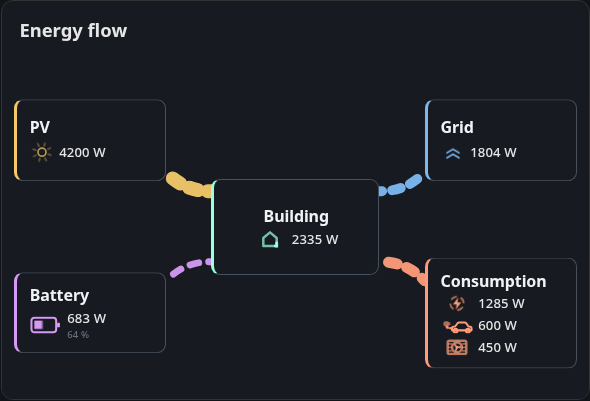

Draws PV, grid, building, battery and loads as five nodes with animated flows between them. The battery node adds the state of charge when one is known. When the direction of a flow is unknown, for example a grid meter without a sign, the line is drawn but not animated.

Option	Values	Default
Power display	Line width, Animation speed	Line width
Hide inactive consumers	on, off	off
Reference for the animation speed	relative (largest active flow), fixed	relative
Reference power (W)	any value	1000

The two reference options only appear with Animation speed. With relative the fastest flow is the largest one currently active, but never less than the reference power. With fixed the reference power alone sets the scale.

If the browser asks for reduced motion, the card always uses line width, because the animation stands still.

Energy: self-sufficiency ring

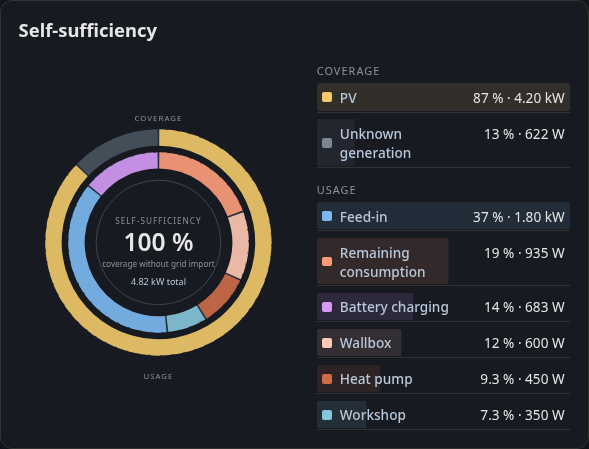

Shows how much of the use is covered by own production, split by source and by consumer.

Option	Values	Default
Figure in the centre	Self-sufficiency, Self-consumption rate, Grid balance, Household consumption	Self-sufficiency
Labels	Percent, Absolute values, both	both
Animate direction	on, off	on
Measured consumers	combined, one per entity	combined

Energy: system diagram

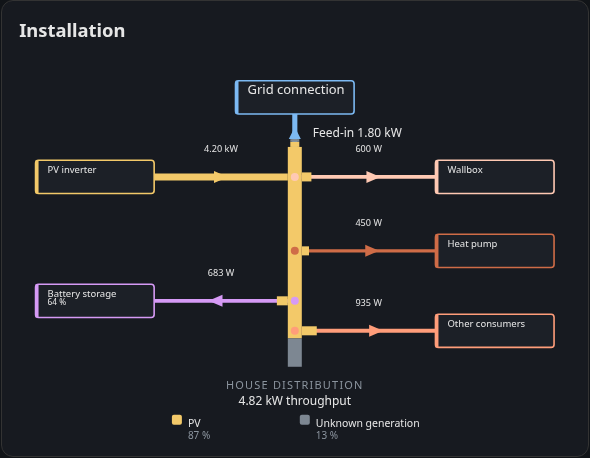

A wiring style diagram of the site (titled Installation on the card) with the live power on each branch. The battery box shows the state of charge on a second line.

Option	Values	Default
Line width	by power, constant	by power
Labels	power only, Power + entity	power only
Hide inactive branches	on, off	off
Display size	XS, S, M, L, XL	M
Animate arrow	on, off	off

With Power + entity each branch also names the entity it is measured from. Other consumers have no entity of their own and are marked as derived from the household consumption.

Energy: balance band

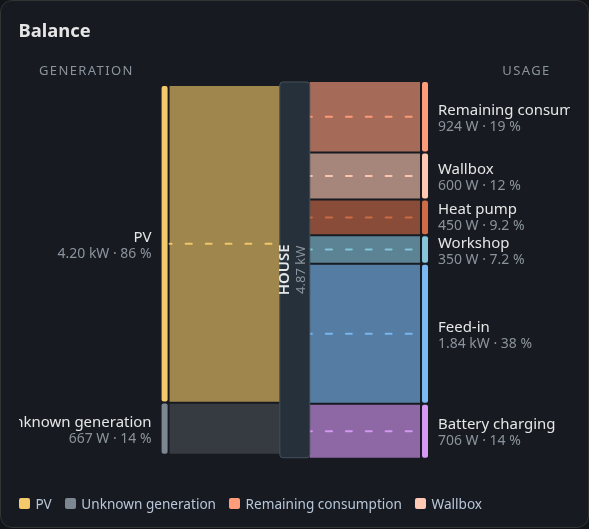

A cut through the current moment: sources stack on the left, consumers on the right and the building sits in the middle. The height of each band follows its power, so you see at a glance which source covers which consumer.

Option	Values	Default
Height reference	proportional (fills the height), absolute (10 kW reference)	proportional
Scaling	linear (true shares), square root (small ones visible)	linear
Unit	automatic, always W, always kW	automatic
Small flows	all separate, bundle below 3 %, bundle below 8 %	all separate
Animate flow	on, off	on
Measured consumers	combined, one per entity	combined

Energy: day band

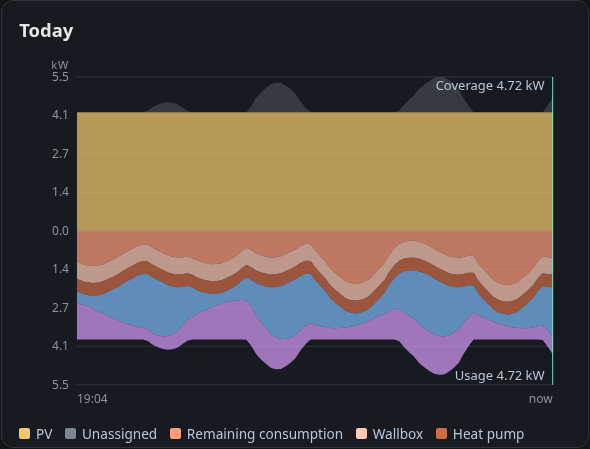

Draws supply and use over the period this browser has recorded. Right after a restart, or on a device that has not recorded yet, the band is narrow until enough history has built up. The time axis names the first and last recorded point.

Option	Values	Default
Display	mirrored (supply / use), supply only, use only	mirrored
Label the now edge	on, off	on

Energy: data board

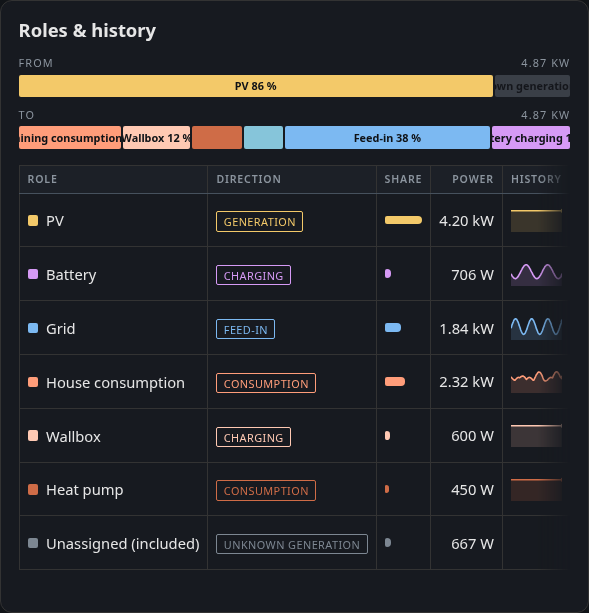

The balance as a table of numbers, one row per role, each with a small history line.

Option	Values	Default
Sorting	fixed order, by power	fixed order
History	15 minutes, 60 minutes, off	15 minutes
Compact	on, off	off
Show inactive roles	on, off	on
Measured consumers	combined, one per entity	combined

The history lines come from the browser’s recording, like the day band.

Measured consumers

When the Energy tab adds up several metered loads into one position, Measured consumers decides how three cards show that sum:

• Balance band and self-sufficiency ring draw one segment per entity with one per entity.
• Data board shows one row per entity, but without a history line, because the history only records role totals.

The other cards always show the sum. The day band draws it as its own area, the system diagram as its own branch and the energy flow names the measured part on the load node.

Energy statistics

Key figures for today, this week, this month or this year. Open statistics opens the Statistics tab for the same period.

Option	Values	Default
Time period	last selected, today, this week, this month, this year	last selected
Key figures	any of the eight figures of the Statistics tab, in the order picked	consumption, PV yield, grid import, feed-in, autarky
Show bar chart	on, off	off

With last selected, the card starts with the period last clicked in this browser. A fixed period applies on every page load. Clicking another period still works but only lasts until the page is reloaded. The bar chart is the chart of the Statistics tab, smaller and without legend, and makes the card taller.

Battery: status card

The card has two displays:

• Column (reserve and remaining time) shows the stored energy as a segmented column with the time to full or empty.

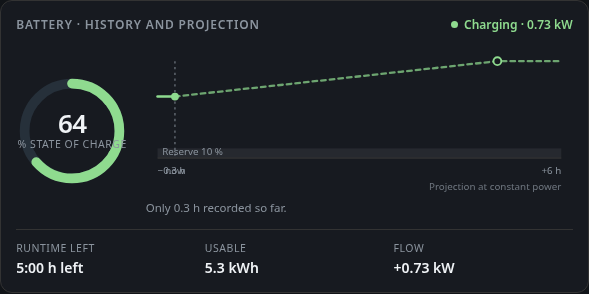

• Trajectory (history and projection) shows a ring with the recorded state of charge and a projection. It needs at least two columns.

Option	Values	Default
Time window (trajectory only)	3 h, 6 h, 12 h, 24 h	6 h
Projection (trajectory only)	same as time window, 3 h, 6 h, 12 h, 24 h	same as time window

The reserve held back for a grid outage is set on the Energy tab (default 10 %, 0 switches it off). Without a reserve the card counts down to empty. If the browser has no recorded history yet, or less than 15 minutes of it, the projection takes the whole width and the card says why. Gaps in the recording break the line instead of bridging it. The same card is available in Home Assistant, see Lovelace card.

History

Puts a chart from the history page on an overview page. Overview and layout editor explains the options Source, Own settings, Period, Statistic and Series.

Diagnostics

A health summary of all devices. Tapping it opens the Diagnostics tab. No options.

Value card and entity list

The value card shows one entity as a large value. The entity list shows several entities with a title of its own. Both are picked under Entities in the block picker.

Device tile

A device from the Devices tab of the picker, with its controls.

Option	Values	Default
Display	Detail (all entities), Compact (up to three values)	Detail

Compact shows up to three values. You can pin which ones, otherwise the tile picks them itself. In the detail view the categories (measurements, controls, configuration, diagnostics) decide which entities appear.
