Entities and actions

Each configured battery becomes one device.

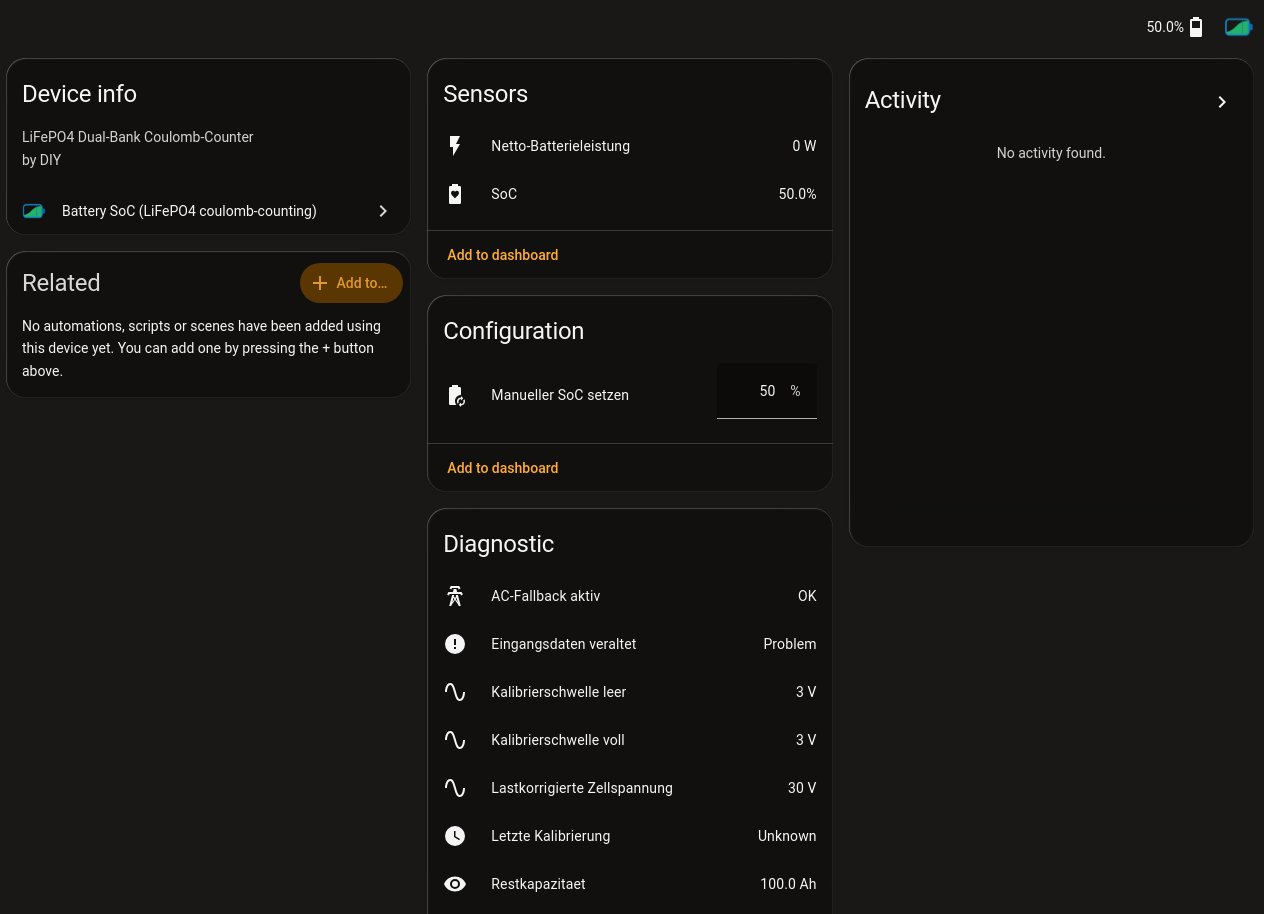

The screenshot comes from a German Home Assistant, so the entity names read in German. The integration ships English and German translations.

Entities

Entity	Meaning
sensor SoC (soc_combined)	Main state of charge (%). In series, the weakest bank.
sensor Net battery power (net_power)	Charge (+) or discharge (−) power (W).
sensor Time to full / Time to empty	Projection at the current rate (h, diagnostic).
binary_sensor Inputs stale	A source sensor stopped updating.
binary_sensor AC fallback active	Running on AC power sensors because a DC sensor went stale. Only exists when one side has both an AC and a DC sensor.
sensor Voltage / Current / Remaining Ah / Load-corrected cell voltage	Per unit (pack, bank A, bank B), diagnostic.
sensor Calibration thresholds / Last calibration	When and at what voltage the counter was last reset.
sensor Voltage-based SoC (uncertain) and binary_sensor Voltage/coulomb mismatch	Plausibility check against the coulomb count.
Series only: sensor SoC Bank A/B, Voltage delta A/B, binary_sensor Banks imbalanced
sensor Open suggestions (open_suggestions_<unit>)	Number of open calibration suggestions, see Calibration suggestions.
number Set manual SoC (per bank in series)	Writes a known SoC to anchor the counter.

The full list lives in battery_soc_core/entities.py.

Action: battery_soc.set_state_of_charge

Anchors the coulomb counter to a known value, for example right after a full charge or from a shunt based reference.

action: battery_soc.set_state_of_charge
target:
  device_id: <your battery device>
data:
  state_of_charge: 100     # percent, 0 to 100
  # bank: a                # series topology only: which bank to anchor

The SoC sensor jumps to the value immediately. The number entities do the same from the UI.

Action: battery_soc.apply_suggestion

Applies an open calibration suggestion. See Calibration suggestions.
